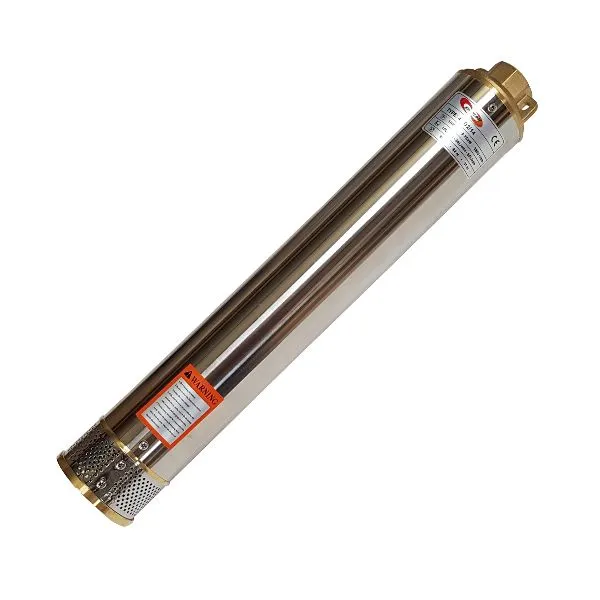

The Hurricane 4SD2/14 borehole submersible pump end requires a 0.75Kw submersible motor to drive it and is capable of delivering up to 10L/min at a depth of 96m.

Operating Conditions:
- Maximum fluid temperature: up to 35°C
- Maximum sand content: 0.25%
- Minimum borehole diameter: 4? (10.16cm)

Motor & Pump:
- Single Phase : 220V – 240V 0.75KW 1HP / 50Hz or
- Three Phase : 380V – 415V 0.75KW 1HP/ 50Hz
- Equip with either a standard (manual) or an automatic control box 0.75KW 1HP (water level sensors)

Specifications:
- Speed : 2850RPM
- Power : 0.75KW
- Power : 1HP
- Outlet : 32mm
- Pump Diameter : 100mm
- Pump Length : 577mm
- Pump Wieght : 5KG
- Output 5L/min 30L/min 55L/min
- Depth 97m 84m 36m

What's in the box
1 x box

Brand Hurricane Pumps
Warranty Limited (12 months)
